I-MPO Connector's Alignment Mechanism kanye Nendima yayo ekuqinisekiseni Ukuzinza Kwedatha Yesikhungo

I-MPO Connector's Alignment Mechanism kanye Nendima yayo ekuqinisekiseni Ukuzinza Kwedatha Yesikhungo

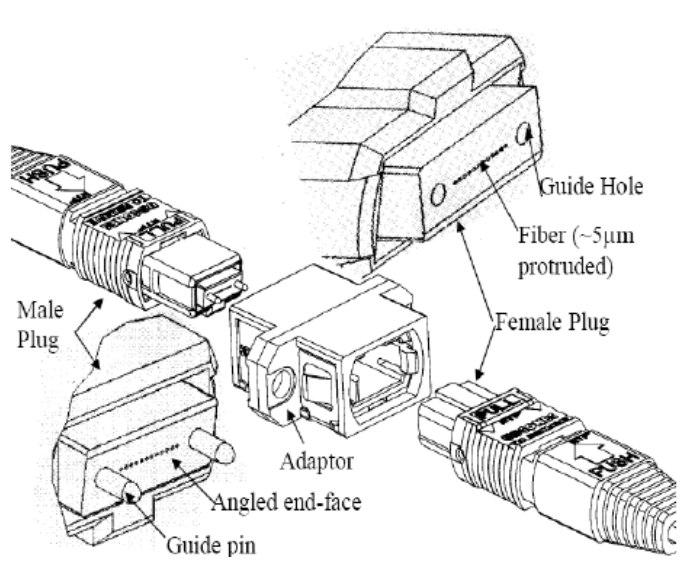

Indlela yokuqondanisa yesixhumi se-MPO itholakala ngomklamo wayo oyingqayizivele nokwakhiwa. Ngokuqondile, isixhumi se-MPO sisebenzisa ukwakheka okunembile kwe-ferrule ngezimbobo eziqondisayo ebusweni bayo ezihambisana kahle nezikhonkwane zokuqondisa (izikhonkwane ze-PIN) ukuxhumana okunembile. Lo mklamo uqinisekisa ukubekwa okuqondile kwemicu ebonakalayo ngaphakathi kwesixhumi, okwenza ukudluliswa okuzinzile kwezimpawu ezibonakalayo.Www.adsscable.cn

Ngesikhathi senqubo yokukhwelana kwesixhumi, intwasahlobo efakwe emsileni we-ferrule inikeza amandla okuthwala, ukukhiya i-ferrule ngokuphepha nge-adaptha. Lokhu akugcini nje ngokuqinisekisa ukuzinza kwesixhumi kepha futhi kuqhubeke nokuthuthukisa ukunemba kokuqondanisa phakathi kwemicu ye-optical.

Www.adsscable.cn

Ngaphezu kwalokho, umzimba wesixhumi we-MPO uqukethe ukhiye ohlangothini ngesimo se-concave noma i-convex, ukusebenzela ukukhawulela isikhundla esihlobene samakhanda esixhumi, njenge-P1, P2, njll. Lo mklamo usiza ukuqinisekisa ukubekwa okufanele kwesixhumi ngesikhathi sokukhwelana, ukuvimbela ukungafani kwe-fiber ngenxa yokuma okungafanele.

Ngaphezu kwalokho, ezinye izixhumi ezithuthukile ze-MPO zifakwe okhiye wokuqondisa okulungiswayo. Lezi zinkinobho zomhlahlandlela zingalungiswa kahle ngokuya ngezidingo zangempela zokuqhubeka ngcono ukunemba kokuqondanisa. Lo mklamo unikeza isixhumi se-MPO ngokuguquguquka okukhulu nokuzivumelanisa ngesikhathi sokukhwelana.

Sekukonke, indlela yokuqondanisa yesixhumi se-MPO itholakala ngokwakhiwa kwayo okunembile kwe-ferrule, ukukhishwa kwentwasahlobo, ukuma okuyinhloko, kanye nezinkinye zomqondiso ezilungiswayo. Lezi zici zokwakha ziqinisekisa ukuqondaniswa okuqondile kwemicu ye-optical ngaphakathi kwesixhumi, ukuqinisekisa ukudluliswa okuzinzile nokusebenza kahle kwezimpawu ezibonakalayo.
